If your curls seem to stay the same length no matter how carefully you handle them, you’re not imagining it. Curly hair breakage is one of the most documented and least understood hair concerns in women with naturally textured hair, and research shows the damage often starts long before you ever see it on the surface.
This article breaks down what a landmark peer-reviewed study published in the British Journal of Dermatology actually found about how and why curly hair breaks, and what that means for the way you care for your hair every single day.
Scientific Source: This article is based on peer-reviewed research by G.A. Camacho-Bragado, G. Balooch, F. Dixon-Parks, C. Porter, and H. Bryant, “Understanding Breakage in Curly Hair,” published in British Journal of Dermatology, 2015, Vol. 173 (Suppl. 2), pp. 10–16. DOI: https://doi.org/10.1111/bjd.13241
Key Takeaways: (TL;DR)
- Research found 96% of African-American women surveyed experience hair breakage; 23% listed it as their number-one hair concern.
- Breakage in curly hair is driven by structural characteristics and grooming practices, not by chemical composition differences.
- Hair damage builds up invisibly inside the shaft long before it causes a visible snap.
- Breakage does not always happen at curls, kinks, or twists; it frequently occurs in smooth, seemingly normal sections of the strand.
- The fracture process follows a 4-step internal mechanism starting at the cuticle and ending deep in the cortex.
- A consistent, friction-reducing hair care routine is the research-backed answer to extending the life of each strand.
The Breakage Problem Is Bigger Than You Think
A 2005 survey of women of African descent living in the United States found that 96% of respondents experienced hair breakage, with nearly a quarter saying it was their single biggest hair concern, making it far and away the most common issue in this population.
What makes this striking is not just the number, but the reason behind it. Researchers have consistently shown that the chemical composition of curly hair is not significantly different from that of other hair types. In other words, it’s not a matter of what the hair is made of. It’s a matter of how curly hair is built and how it responds to the stresses placed on it every day.
The acceleration of hair degradation in curly hair comes from two things working against each other: the unique structural geometry of the fibre itself, and the grooming-induced forces applied to it repeatedly over time.
What Actually Makes Curly Hair More Vulnerable?
Curly hair isn’t weaker by chemistry; it’s more vulnerable by structure. The combination of a complex internal architecture and the physical forces from daily grooming creates conditions where damage accumulates faster and more unpredictably than in straighter fibre types.
Your Hair Is a Layered Engineering Marvel
To understand why curly hair breaks, it helps to understand what hair actually is at a structural level. Human hair is a highly hierarchical natural fibre, built from the inside out in the following layers:
- At the nanoscale, Keratin alpha-helices coil into rope-like structures, held together by keratin-associated proteins (KAPs) to form microfibrils.
- At the microscale, Microfibril bundles combine within a protein matrix to form macrofibrils, which aggregate into cortical cells. These cells are held together by the cellular membrane complex (CMC).
- At the outermost layer, The cortex is protected by the cuticle, 5 to 10 layers of flattened, keratinized cells arranged like roof tiles, overlapping in the same direction.
Each of these layers plays a role in both protecting the hair and distributing mechanical load when the strand is stressed.
The Role of Twists and Kinks in Curly Hair
Curly hair fibres contain twists, kinks, and macroscopic constrictions that are largely absent in straighter hair types. These geometric features act as natural stress concentration points, places where mechanical force, when applied, tends to focus rather than distribute evenly.
However, and this is where the research gets genuinely surprising, fractures do not always happen at the twist. In an analysis of 20 post-fracture specimens from the study, only four breaks were associated with a visible twist or constriction. The rest occurred in seemingly uniform, smooth regions of the strand.
This suggests that the real risk in curly hair is not just at the obvious structural heterogeneities. Something more invisible is happening inside the fibre.
Grooming Forces: The Accumulating Threat
The repeated application of mechanical stress from everyday grooming (stretching, twisting, bending, and friction from tools and fabrics) accumulates inside the hair shaft over time. Each grooming session adds to an internal load history that the hair fibre carries silently, even when the surface looks perfectly intact.
This is why research recommends selecting an appropriate routine that reduces grooming forces and minimizes friction between the hair fibres and the tools or surfaces they contact.
The 4-Step Story of How Curly Hair Breaks

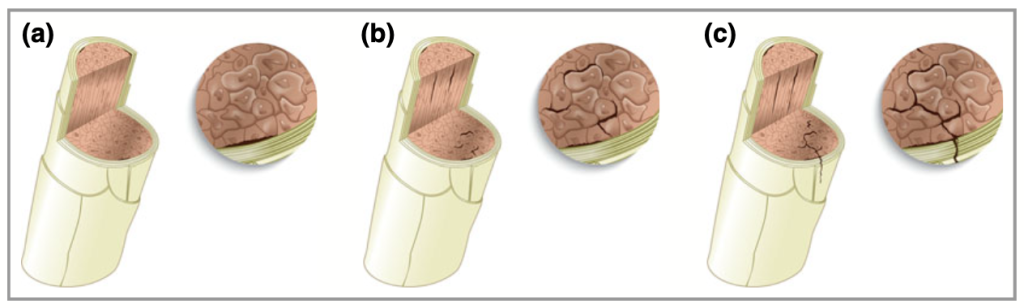

Researchers using a combination of scanning electron microscopy (SEM) and synchrotron X-ray tomography (XTM), applied simultaneously during controlled mechanical stress tests, identified a four-step internal fracture mechanism that explains how a single curly hair strand moves from healthy to broken.
Step 1: The Cuticle Begins to Slide
The first sign of trouble is adhesion failure at the cuticle-cuticle interface. Under stress, the outermost cells of the cuticle begin to lift and slide. This occurs because the bonds between the hydrophobic components of adjacent cuticle layers, particularly those involving the fatty acid 18-methylicosanic acid, are relatively weak.
What makes this sneaky is that when the stress is released, the cuticle returns nearly to its original position. The surface of the fibre shows almost no evidence that anything happened. The hair looks fine.
Step 2: The Cuticle-Cortex Bond Breaks
With repeated or increasing stress, adhesion failure progresses deeper. The bond between the cuticle and the underlying cortex begins to break down. At this point, the cuticle is no longer effectively attached to the cortex along the entire interface.
This is a structural turning point. Once the cuticle detaches from the cortex, the load that was previously shared across both layers is now transferred almost entirely to the cortex. The cortex stiffens in response, a change measurable as an increase in Young’s modulus (the material’s resistance to deformation).
Step 3: Internal Cracks Form and Multiply
This is where X-ray tomography revealed something that scanning electron microscopy alone could not show. Inside the hair shaft, voids and cracks begin to nucleate and grow along the cuticle-cortex junction after the second stress application. These internal gaps reduce the fibre’s ability to absorb mechanical energy, measurable as a statistically significant drop in relative energy absorption.
Crack density continues to increase with each stress cycle. The fibre’s cross-sectional area begins to decrease, particularly at the eventual fracture site, as the cracked intercellular spaces allow cortical cells to slide and the fibre to contract radially.
Step 4: The Final, Unpredictable Break
When crack density reaches a critical threshold, the intercellular cracks propagate outward toward the surface and eventually merge at the cuticular junction. This is the point of final fracture, and it can occur at a location that shows no surface warning signs whatsoever.
This explains why breakage in curly hair happens at unpredictable sites and why it so often feels random. The visible surface of the hair is, by design, a poor predictor of where the next break will occur.
The Sneaky Truth: Damage Hides Where You Can’t See It
One of the most important findings of this research is that the surface of a hair fibre reveals very little about its internal mechanical history. Damage accumulates silently, invisibly, and without the warning signals most people look for.
Under stress, the cuticle lifts but snaps back when stress is removed. This means hair that has experienced significant internal structural damage can look smooth, glossy, and undamaged to the naked eye.
The research found that even surface defects like missing cuticle layers or chipped areas do not necessarily determine where a fracture will ultimately occur. Minor surface heterogeneities contribute to, but do not control, the final failure of the strand.
The critical cracks, the ones that ultimately cause the break, form on the inside and migrate outward. Catastrophic failure only happens once the fibre has undergone a relatively large internal strain, well past the point where any surface signal would have warned you.
This reframes the idea of “healthy-looking hair” entirely. In curly hair, how the strand looks and how structurally sound it actually is can be two very different things.
How to Read Your Breakage (Based on What the Research Found)
You can’t always see where your hair is going to break, but you can learn to recognize the patterns that suggest internal damage is accumulating.
Where Is the Breakage Happening?
The study found two distinct breakage patterns in curly hair:
At macroscopic constrictions (twists or kinks)
These locations act as stress concentration points with an uneven macrostructure, making them more susceptible to surface-initiated cracks. If you’re consistently finding breaks at highly curved or kinked sections, these structural features may be contributing.
Away from twists, in smooth-looking sections
This is the more surprising, and more common pattern. It indicates that internal stress has been accumulating through repeated grooming forces, and the fibre has reached a critical internal crack density. The break appears without warning, often in a section that looked fine.
What Type of Fracture Are You Seeing?
The research identified two distinct fracture surfaces under electron microscopy:
Stepwise fractures
Typical of hair that has been subjected to direct tensile (pulling) stress. The break looks layered or tiered.
Bevelled fractures
Typical of hair that has experienced cyclic fatigue, meaning repeated stress applied over time. The break surface is angled and smooth.
If you’re consistently finding short, blunt fragments in your comb or on your clothing, especially from areas that look unaffected, the research suggests this reflects accumulated internal fatigue from daily grooming, not a one-time event.
What Your Hair Actually Needs
The study’s conclusion is direct: because damage accumulates gradually and internally throughout the life cycle of each fibre, a continuous and proactive hair care regimen is not optional; it’s structural maintenance.
The specific recommendations that emerge from the research are focused on two factors:
Reducing the Forces Applied During Grooming
Mechanical stress is the primary driver of the internal fracture cycle described above. Every grooming session applies tensile, torsional, and bending forces to the hair shaft. The research explicitly recommends choosing routines and tools that minimize the magnitude of these forces, because each application adds to the cumulative internal load history of the fibre.
Reducing Friction Between the Hair and Its Environment
Friction (between the hair and combs, brushes, towels, pillowcases, and other fibres) generates a form of surface abrasion that accelerates cuticle failure. The cuticle, once compromised, cannot as effectively protect the cortex from the stress cascade described in the four-step mechanism above.
The research recommends reducing both friction between grooming tools and fibres, and friction between individual hair fibres themselves.
Why Consistency Is the Non-Negotiable Part
Hair fibres are not renewable over the course of their life cycle; the same strand that grows from your scalp today will experience months or years of grooming before it’s shed. Because internal damage is cumulative and largely irreversible, the window for protecting a given strand is the entire span of its existence on your head.
A routine applied once a month is not the same as a routine applied consistently. The research frames hair care as structural maintenance, not a luxury, but an ongoing intervention in a process that is always happening.
When Consistent Care Isn’t Enough: Exploring Your Options
For many people with curly hair, consistent care helps maintain what’s there, but it doesn’t always address what’s already been lost. If years of accumulated breakage have left your hair noticeably thinner, shorter, or more fragile than it used to be, it may be worth looking into professional, non-surgical options designed to support the scalp and follicle environment alongside your care routine.
Nova Voya partners with leading clinics that offer innovative non-surgical hair restoration treatments, including options designed to support follicle health without the downtime of surgical procedures.
If you’ve been doing everything right and still feel like you’re losing ground, a professional consultation can help you understand what’s actually going on beneath the surface.
Innovative Non-Surgical Hair Restoration
Why Surface-Level Care Has Its Limits
The research is pretty clear on this: by the time you actually see shorter, thinner, or snapping strands, the damage has already been happening underneath for a while. Cracks form deep inside the hair shaft, at the junction between the cuticle and the cortex, long before anything shows up on the surface.
That’s why even the most dedicated wash-day routine can only do so much; it’s working on the outside of a problem that started within.
What Non-Surgical Treatments Actually Do
This is where clinical options start to make sense for some people. Treatments like PRP (platelet-rich plasma), exosome therapy, and low-level laser therapy don’t treat the hair you can see; they work on the scalp and follicle environment where new hair is made.
Think of it as preparing better soil before planting. The goal is to reduce shedding, improve circulation around the follicle, and help new strands grow in with stronger structural integrity from the start, so the breakage cycle is less likely to repeat itself.
Read More: The Ultimate Guide to Non-Surgical Hair Restoration: Methods, Costs & Results
How to Access These Treatments the Right Way
If you’re considering this route, the most important thing is making sure you’re in qualified hands. In Dubai, for example, specialists at accredited clinics are licensed through the Dubai Health Authority (DHA), a regulatory body that sets strict standards for who can perform these treatments and how.
Platforms that specialize in medical tourism can help you navigate this process: matching you with verified, licensed providers, helping you understand what’s included in a treatment plan, and making sure nothing gets lost in translation between you and your care team.
Myths vs. Reality: What Research Actually Says About Curly Hair Breakage
| Common Myth | The Research Reality |
| Curly hair breaks because it’s chemically weaker than other hair types | Only 4 out of 20 observed fractures occurred at twists or constrictions; the majority happened in apparently uniform sections due to internal stress |
| If your hair looks smooth and shiny, it’s not damaged | Cuticle surface appearance is a poor predictor of internal damage; severe internal cracking can exist with no visible surface change |
| Breakage always happens at your kinks and curls | Internal voids and cracks can develop and grow without any surface evidence or sensation. Damage is cumulative and often invisible |
| Trimming damaged ends is enough to stop breakage | Breakage is an ongoing process driven by grooming forces; without addressing the routine itself, new damage continues to accumulate |
| If you feel no breakage during grooming, your hair is fine | Internal voids and cracks can develop and grow without any surface evidence or sensation, damage is cumulative and often invisible |
Summary
The science of curly hair breakage is, at its core, a story about what you can’t see. Research using electron microscopy and synchrotron X-ray tomography has shown that the real damage happens internally; a four-step cascade starting at the cuticle-cuticle interface and ending in an unpredictable fracture that can occur anywhere along the strand. The surface of the hair is, by design, a poor witness to this process.
What this means in practice is simple but demanding: consistent, friction-reducing care is not a nice-to-have for curly hair, it’s a structural requirement.
The same fibre that grows from your scalp today will carry the load history of every grooming session it experiences. Protecting it from the start, and continuing to protect it throughout its life cycle, is the only approach that the research supports.
And if you’ve already lost ground, it’s never too late to explore what a professional assessment might reveal. For those who want to take that next step, Nova Voya’s non-surgical hair restoration program connects you with DHA-licensed specialists in Dubai who offer a fully personalized approach, from trichoscopy and hormonal profiling to PRP, exosome therapy, and low-level laser treatments.
No surgery, no guesswork. Just a clinical plan built around what your scalp actually needs.
Culturally Vetted Medical Packages 🏥
Navigate your medical journey with confidence. Nova Voya partners exclusively with clinics that understand the needs of international patients, ensuring a respectful and seamless experience.
Start Your Journey
Secure your preferred dates with our culturally tailored packages.
View Medical Packages →*Verified Clinics Only
Has your curly hair journey been more about fighting breakage or figuring out whether what you’re seeing is actually new growth? Drop your experience in the comments below.
FAQs
Curly hair breaks more due to its structural geometry (twists, kinks, and the layered cuticle-cortex interface) combined with the cumulative stress from daily grooming; it’s not because of any chemical difference in composition.
No. Research found that the majority of fractures in curly hair occur in smooth, uniform sections of the strand, caused by internal crack accumulation rather than surface defects or structural twists.
Often not. The cuticle returns to its normal appearance after stress is released, meaning hair that has experienced significant internal structural damage can still look healthy to the naked eye.
Repeated mechanical stress from grooming (pulling, bending, twisting, and friction) causes progressive failure at the cuticle-cortex interface, leading to the accumulation of internal voids and cracks over time.
Research points to two priorities: reducing the mechanical force applied during grooming, and reducing friction between the hair and tools, fabrics, and other fibres, applied consistently throughout the entire life of each strand.
No. Breakage occurs along the shaft of an existing strand due to mechanical failure; hair loss involves the follicle itself. Breakage creates shorter strands, while hair loss reduces overall density at the scalp.
Because internal crack accumulation happens below the visible surface and continues silently, the fracture site is determined by internal crack density, not by any external marker, making it genuinely difficult to predict before it happens.
